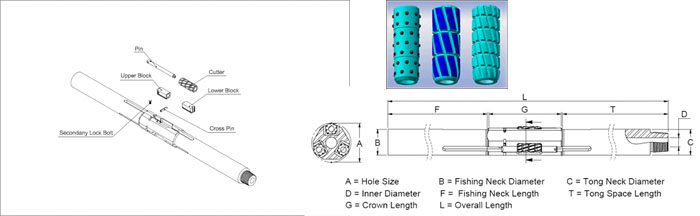

Roller Reamer
Tri Wave’s Roller Reamers are manufactured from AISI 4145H modified heat treated alloy steel, simply designed to maintain the necessary hole gauge for both straight drilling and directional drilling. Different prototypes of cutter ensure the tools to working in whatever soft, medium or most tough formation.

Standard Specifications of Roller Reamer

Hole Size(in)	Body OD(in)	ID(in)	Fishing Neck Length (in)	Nominal Fishing Neck Dia. (in)	Overall Length (in)
5 7/8	4 3/4	1 1/4	37	4 3/4	80
6	4 3/4	1 1/4	37	4 3/4	80
6 1/8	4 3/4	1 1/4 or 1 1/2	37	4 3/4	80
6 1/4	4 3/4	1 3/4	37	4 3/4	80
6 1/2	4 3/4	1 3/4	37	4 3/4	80
7 7/8	6 1/2	2 1/4	37	6 1/2	95
8 1/2	6 1/2	2 1/4	37	6 1/2	95
8 3/4	6 1/2	2 1/4	37	6 1/2	95
9 7/8	6 1/2 or 8	2 1/4	48	6 1/2 or 8	98
11	8	2 13/16	48	8	98
12 1/8	8 or 9 1/2	2 13/16	55	8 or 9 1/2	126
12 1/4	8 or 9 1/2	2 13/16	55	8 or 9 1/2	126
14 3/4	9 1/2	2 13/16	55	9 1/2	126
16	9 1/2	2 13/16	55	9 1/2	126
17 1/2	9 1/2	2 13/16	55	9 1/2	126
20	9 1/2	2 13/16	55	9 1/2	126
26	9 1/2	2 13/16	55	9 1/2	126
