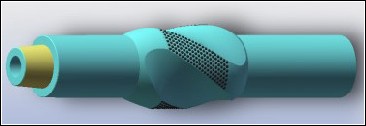

Spherical Stabilizer
• To be manufactured from high strength 4145H heat treated material
• Small size design with lower resistance
• Various hardfacing is available i.e. Composite Tungsten Carbide Rod, Tungsten Carbide Inserts, Diamond Inserts, Geothermal
• Special spec is available

Specifications
OD1	OD2	ID	Length	Connection
				String Version		Near Bit Version
				Top	Down	Top	Down
6	4 3/4	2	31	3 1/2IF			3 1/2REG
6 1/2
7	6 1/4	2 1/4	33 1/2	4 1/2IF			4 1/2REG
7 7/8
8	6 1/2	2 13/16	33 1/2
8 1/2
9	7 3/4	2 13/16	34 1/4
9 1/4
12	8	3	37	6 5/8REG
12 1/4

* OD1: Bit OD/Working OD,OD2: End OD of Body
